need wiring pinout for speed sensor on trans (3 pin)

[eliterit]

Hey all,

I'm new to the forum. I'm helping my sister out by replacing the clutch on her 2003 toyota matrix. I'm about 14 hours into the job and almost done, however, I ran into a problem where one of the brackets on the trans got caught on and tugged too hard on a wiring harness connector and pulled off the connector from the wires. Now I need help figuring out which color wires go to which pin on the connector and I believe the sensor is for the speed as it is on the back of the trans right by the axles.

Three wires on the plug: Red/White, Brown, White/Green

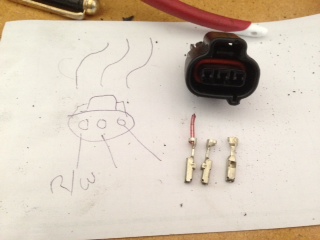

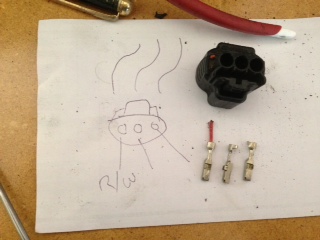

The third or first pin I do know the location as it still had some wire color left on it, which is the red/white wire.

I appreciate any help you all can give.

Thanks,
Jaime

[Jasontamu]

neat pics....

[joatmon]

viewtopic.php?f=28&t=15305" onclick="window.open(this.href);return false;

GMJAP posted just such a thing

[eliterit]

Thanks joatmon!


That's exactly what I needed. The middle pin (2) is the ground (brown), and the third pin (3) is white/green.
