This diagram is for 2003-2008 Pontiac Vibes onlyThere have been a few post asking for wire diagrams for the vibe, so I thought I would share the one that was printed for me. Please if you are not comfortable working on an automobiles electrical system; practice on a friends car Seriously if you're not comfortable please take your car to a professionalAudio/Mobile VideoBatteryBLUE/WHITE(+)RADIO HARNESSAccesoryGRAY(+)RADIO HARNESSGroundBROWN(-)RADIO HARNESSIlluminationGREEN(+)RADIO HARNESSDimmerWHITE/BLACK(-)RADIO HARNESSPower AntennaBLACK(+)RADIO HARNESSAmp Turn OnBLACK(+)RADIO HARNESSLF Speaker (+)PINK AT THE RADIO HARNESSLF Speaker (-)VIOLET AT THE RADIO HARNESSRF Speaker (+)LIGHT GREEN AT THE RADIO HARNESSRF Speaker (-)BLUE AT THE RADIO HARNESSLR Speaker (+)BLACKLR Speaker (-)YELLOWRR Speaker (+)REDRR Speaker (-)WHITEAmp LocationLOCATED UNDER THE FRONT PASSENGERS SEATSteering CntrlsOPTIONALSpeed CntrlOPTIONALRadio SecurityYESConvenienceHeadlights-LoRED(-)HEADLIGHT SWITCHHeadlights-HiRED/YELLOW(-)AT VEHICLE LIGHT SWITCH HARNESSLF Pk Lt BulbGREEN(+)AT FRONT LEFT PARKING LIGHTRF Pk Lt BulbGREEN(+)AT FRONT RIGHT PARKING LIGHTLR Pk Lt BulbGREEN(+)AT REAR LEFT PARKING LIGHTRR Pk Lt BulbGREEN(+)AT REAR RIGHT PARKING LIGHTAll Hazrd LightsYELLOW/BLAC(-)HAZZARD SWITCHLF Hazrd BulbGREEN/BLACK(+)AT FRONT LEFT DIRECTIONAL LIGHTRF Hazrd BulbGREEN/YELLOW(+)AT FRONT RIGHT DIRECTIONAL LIGHTLR Hazrd BulbGREEN/BLACK(+)AT REAR LEFT DIRECTIONAL LIGHTRR Hazrd BulbGREEN/YELLOW (+) AT REAR RIGHT DIRECTIONAL LIGHTWipers-LoBLUE/WHITE(+)STEERING COLUMNWipers-HiBLUE/RED(+)STEERING COLUMNParking BrakeRED/BLACK(-)AT PARKING BRAKE SWITCH HARNESSTrnk ReleaseBLUE/WHITE(-)AT THE SWITCH IN THE DRIVERS DASHControl ModulesModule 1PCM - POWERTRAIN CONTROL MODULE IS LOCATED BEHIND THE GLOVE BOXSecurityBatteryWHITE & BLACK(+)IGNITION SWITCH HARNESSIgnition 1BLACK/WHITE(+)IGNITION SWITCH HARNESSStarter 1RED(+)IGNITION SWITCH HARNESSAll Door TriggerRED/YELLOW(-)DRIVERS KICK PANELNote #1Domelight SuperRED/WHITE(-)AT THEFT MODULE BEHIND RIGHT SIDE OF DASH NEXT TO GLOVEBOXNote #2LF LatchRED/WHITE(-)AT THEFT MODULE BEHIND RIGHT SIDE OF DASH NEXT TO GLOVEBOXRF LatchRED(-)AT THEFT MODULE BEHIND RIGHT SIDE OF DASH NEXT TO GLOVEBOXLR LatchRED(-)AT THEFT MODULE BEHIND RIGHT SIDE OF DASH NEXT TO GLOVEBOXRR LatchRED(-)AT THEFT MODULE BEHIND RIGHT SIDE OF DASH NEXT TO GLOVEBOXAlarm DisarmBLUE/YELLOW(-)@ BLU 15 PIN CONN. IN THE DR. KICKNote #3Alarm ArmGREEN(-)@ BLU 15 PIN CONN. IN THE DR. KICKNote #4Parking LightsGREEN(+)DRIVERS KICK PANELLow Crr Pk LightsGREEN/WHITE(-)AT THE TOP OF THE STEERING COLUMN Remote StartBatteryWHITE & BLACK(+)IGNITION SWITCH HARNESSIgnition 1BLACK/WHITE(+)IGNITION SWITCH HARNESSIgnition 2BLACK/YELLOW(+)IGNITION SWITCH HARNESSAccessory 1BLUE/RED(+)IGNITION SWITCH HARNESSStarter 1RED(+)IGNITION SWITCH HARNESSAnti-Theft TypePASSKEY IIIAnti-Theft DescriptAN RF SIGNAL ACTIVATED SYSTEMKey SenseBLUE/BLACK(-)IGNITION SWITCH HARNESSTachometerRED/BLUE(AC)@ THE IGNITION COILNote #5Crankshaft SensorBLACK(+)AT PCM MODULE UNDER GLOVEBOXNote #6Camshaft SensorBLACK(+)AT PCM MODULE UNDER GLOVEBOXNote #7Speed SenseVIOLET/WHITE(+)AT GAUGE CLUSTER HARNESS BEHIND DASHParking LightsGREEN(+)DRIVERS KICK PANELLow Crr. Pk LightsGREEN/WHITE(-)AT THE TOP OF THE STEERING COLUMNBrake LightsGREEN/WHITE(+)AT THE SWITCH ABOVE BRAKE PEDALReverse LightsRED/BLACK(+)PIN 11 AT THE PCM CONNECTOR 3HornGREEN/YELLOW(-)IN 12 PIN PLUG NEXT TO THE AIRBAG PLUG @ THE STEERDoor Locks/WindowsPower UnlockBLUE(-)AT BLUE 15 PIN CONNECTOR IN THE DR. KICKNote #8PowerLockBLUE/WHITE(-)AT BLUE 15 PIN CONNECTOR IN THE DR. KICKNote #9Driver Mtr UnlockRED/SILVER DOTS(REV)AT BLUE 15 PIN CONNECTOR IN THE DR. KICKDriver Mtr LockBLUE/SILVER DOTS(REV)AT BLUE 15 PIN CONNECTOR IN THE DR. KICKPas Mtr UnlockRED/SILVER DOTS(REV)AT BLUE 15 PIN CONNECTOR IN THE DR. KICKPas Mtr LockBLUE(+)AT MOTOR IN DOORLF Window UpYELLOW(REV)DRIVERS DOOR WINDOW SWITCHLF Window DnGREEN(REV)DRIVERS DOOR WINDOW SWITCHRF Window UpBLACK/RED(REV)DRIVERS KICK PANELRF Window DnBLACK/WHITE(REV)DRIVERS KICK PANELLR Window UpRED/BLUE(REV)DRIVERS KICK PANELLR Window DnBLUE(REV)DRIVERS KICK PANELRR Window UpRED/BLUE(REV)DRIVERS KICK PANELRR Window DnRED(REV)DRIVERS KICK PANELSunroof OpenGREEN OR RED(REV)SUNROOF SWITCHSunroof CloseGREEN/WHITE OR RED/BLUE(-)SUNROOF SWITCHNote #1: YOU MUST DIODE ISOLATE BOTH TRIGGERS TO MONITOR ALL DOORS.Note #2: PIN #3Note #3: A SINGLE PULSE DISARMS THE ALARM & UNLOCKS THE DRIVERS DR. A SECOND PULSE UNLOCKS ALL DOORSNote #4: THIS WIRE ALSO LOCKS THE DOORSNote #5: YOU CAN ALSO USE A YEL/GRN, GRY AND A WHT. THE COILS ARE LOCATED ON THE SIDE OF THE ENGINE YOU CAN ALSO USE A FUEL INJECTOR. USE THE OPPOSITE OF THE BLK/WHT YOU CAN ALSO USE A BLACK PIN 5 AT THE PCM CONNECTOR 4Note #6: PIN #27Note #7: PIN #25Note #8: IF EQUIPPED WITH FACTORY SECURITY, SEE THE ARM AND DISARM WIRESNote #9: PIN #7 & #19 - YOU MUST DIODE ISOLATE THE UNLOCK PULSE FROM THE ALARM UNIT TO AVOID FEEDBACK. SEE DOUCMENTS.This diagram is for 2009-2010 Pontiac Vibes onlyAudio/Mobile VideoBattery LIGHT BLUE (+) RADIO HARNESS Accessory GRAY (+) RADIO HARNESS Ground BROWN (-) RADIO HARNESS Illumination GREEN (+) RADIO HARNESS Power Antenna TAN (+) RADIO HARNESS LF Speaker (+) PINK LF Speaker (-) VIOLET RF Speaker (+) LIGHT GREEN RF Speaker (-) BLUE LR Speaker (+) BLACK LR Speaker (-) YELLOW RR Speaker (+) RED RR Speaker (-) WHITE ConvenienceHeadlights-Lo GREEN (-) AT VEHICLE LIGHT SWITCHHeadlights-Hi LIGHT GREEN (-) AT VEHICLE LIGHT SWITCHLF Pk Lt Bulb GREEN (+) AT FRONT LEFT PARKING LAMP RF Pk Lt Bulb GREEN (+) AT FRONT RIGHT PARKING LAMP LR Pk Lt Bulb GREEN (+) AT REAR LEFT PARKING LAMP RR Pk Lt Bulb GREEN (+) AT REAR RIGHT PARKING LAMPAll Hazrd Lights TAN (-) AT VEHICLE HAZARD SWITCH LF Hazrd Bulb YELLOW (+)AT FRONT LEFT TURN LAMP RF Hazrd Bulb BLUE/RED (+) AT FRONT RIGHT TURN LAMP LR Hazrd Bulb YELLOW (+) AT REAR LEFT TURN LAMP RR Hazrd Bulb LIGHT BLUE (+) AT REAR RIGHT TURN LAMP Wipers-Lo BLACK (+)AT WIPER CONTROL SWITCH Wipers-Hi RED (+) AT WIPER CONTROL SWITCH Parking Brake TAN (-) AT VEHICLE PARKING BRAKE SWITCHSecurityBattery BLUE & RED (+) IGNITION SWITCH HARNESS Ignition 1 GREEN (+) IGNITION SWITCH HARNESS Starter 1 WHITE (+) IGNITION SWITCH HARNESS All Door Trigger GRAY (-) AT MAIN BODY ECU Note #1LF Latch VIOLE
T (-) AT MAIN BODY ECU RF Latch TAN (-) AT MAIN BODY ECU LR Latch YELLOW (-) AT MAIN BODY ECU RR Latch BLACK (-) AT MAIN BODY ECU Trunk Trigger LIGHT GREEN (-)AT MAIN BODY ECU Alarm Disarm PINK (-) AT MAIN BODY ECU Note #2Parking Lights GREEN (+) IN HARNESS IN DRIVER KICKPANEL Low Crr Pk Lights BROWN (-) AT VEHICLE LIGHT SWITCHRemote StartBattery BLUE & RED (+) IGNITION SWITCH HARNESS Ignition 1 GREEN (+) IGNITION SWITCH HARNESS Ignition 2 BROWN (+) IGNITION SWITCH HARNESS Accessory 1 GRAY (+) IGNITION SWITCH HARNESS Starter 1 WHITE (+) IGNITION SWITCH HARNESS Starter 2 BLACK (+) IGNITION SWITCH HARNESS Anti-Theft Type UNIVERSAL IMMOBILIZER Anti-Theft Descript THE KEY SENDS AN RF SIGNAL TO THE BCM MODULE THROUGH AN ANTENNA LOCATED AROUND THE IGNITION CYLINDER Key Sense BLUE (-) IGNITION SWITCH HARNESS Tachometer GRAY (AC) AT DATLINK CONNECTOR UNDER DRIVER SIDE DASH Speed Sense VIOLET (AC) AT ECM MODULE Parking Lights GREEN (+) IN HARNESS IN DRIVER KICKPANEL Low Crr. Pk Lights BROWN (-) AT VEHICLE LIGHT SWITCH Brake Lights BLUE (+) AT SWITCH ABOVE BRAKE PEDAL Reverse Lights RED (+) IN HARNESS BEHIND TRIM IN LEFT SIDE OF CARGO AREA Horn LIGHT GREEN (-) IN HARNESS AT STEERING COLUMN IMO LIGHT GREEN (DATA) AT TRANSPONDER ECU BEHIND RADIO IMI PINK (DATA) AT TRANSPONDER ECU BEHIND RADIO Rear Defrost TANDoor Locks/WindowsPower Unlock TAN (-) AT MAIN BODY ECU Power Lock VIOLET (-) AT MAIN BODY ECU Driver Mtr Unlock GREEN (REV) IN DRIVER KICKPANELDriver Mtr Lock TAN (REV) DRIVER KICKPANEL Pas Mtr Unlock GREEN (REV) IN PASSENGER KICKPANEL Pas Mtr Lock TAN (REV) IN PASSENGER KICKPANEL LF Window Up GREEN (REV) AT MASTER WINDOW CONTROL SWITCH LF Window Dn YELLOW (REV) AT MASTER WINDOW CONTROL SWITCH RF Window Up GREEN (REV) AT MASTER WINDOW CONTROL SWITCH RF Window Dn BROWN (REV) AT MASTER WINDOW CONTROL SWITCH LR Window Up RED (REV) AT MASTER WINDOW CONTROL SWITCH LR Window Dn BLUE (REV) AT MASTER WINDOW CONTROL SWITCH RR Window Up BLACK (REV) AT MASTER WINDOW CONTROL SWITCH RR Window Dn YELLOW (REV) AT MASTER WINDOW CONTROL SWITCH Sunroof Open GREEN (-) AT SUNROOF CONTROL SWITCH Sunroof Close BLUE (-) AT SUNROOF CONTROL SWITCHNote #1 TO AVOID DOMELIGHT DELAY USE INDIVIDUAL DOOR TRIGGERS AND DIODE ISOLATE EACH WIRENote #2 A DOUBLE PULSE ON THIS WIRE WILL UNLOCK ALL DOORSPlease if you are not comfortable working on an automobiles electrical system; practice on a friends car Seriously if you’re not comfortable please take your car to a professional

[keithvibe]

STICKY!!!! STICKY!!!! STICKY!!!! STICKY!!!! STICKY!!!! STICKY!!!! STICKY!!!!

[Sublimewind]

Quote, originally posted by keithvibe » STICKY!!!! STICKY!!!! STICKY!!!! STICKY!!!! STICKY!!!! STICKY!!!! STICKY!!!! 2nded,ed,ed,ed,ed,ed,ed,ed....

[audiovibe]

(removed) edAron

[audiovibe]

Bringin it back up

[breezd]

Sheesh! What kinda Moderators do we have around here that wouldn't have STICKY-ed it?! I agree, this needs to be STICKIED! Great post Aron!

[VibeBear]

Does anyone have the info on the '09's? I'm sure there's gotta be installs done by now

[millster]

Quote, originally posted by breezd »Sheesh! What kinda Moderators do we have around here that wouldn't have STICKY-ed it?! I agree, this needs to be STICKIED! Great post Aron!Ones who hate to be called out in public like this and who would appreciate, oh I don't know, an instant message requesting such an action. Or to put it in language that people seem to understand better "Like, (removed) (removed)? Y didn't u just PM me?". OK, that was actually painful to type like that. (Note: The above is intended as tongue-in-cheek and anyone who takes it too seriously needs to lighten up )Anyway, despite that consider this "stuck".

[Wolfman213]

Quote, originally posted by audiovibe »LF Window Up YELLOW (REV) DRIVERS DOOR WINDOW SWITCH LF Window Dn GREEN (REV) DRIVERS DOOR WINDOW SWITCH RF Window Up BLACK/RED (REV) DRIVERS KICK PANEL RF Window Dn BLACK/WHITE (REV) DRIVERS KICK PANEL Did you source state what is positive and negative for each listed above? I am wanting to use those particular wire to feed some leds since they are only on when the car is on. At least the right side gives two wires, but since the left side only has one wire listed.

[audiovibe]

Quote, originally posted by Wolfman213 »Did you source state what is positive and negative for each listed above? I am wanting to use those particular wire to feed some leds since they are only on when the car is on. At least the right side gives two wires, but since the left side only has one wire listed.The polarity is reversed or (REV) meaning that once the switch is pushed down the polarity changes from + to -. I would not recommend wiring led's to these switches.Where are you wanting to put the LED's at? There will be another way to wire them up.Aron

[vibe_rator]

Hi.I want to ditch the factory amp when I replace the factory HU. Do I simply cut the ends off of the cable bundles going in/out of the amp under the passenger seat, match the colors and crimp?Please advise.Thanks!

[petetomo]

vibe_rator:I am considering doing the same thing. My new head unit is 200 watts so it makes the amp redundant. With the factory amp on, I can hardly turn up the volume on the head unit without it getting too loud. Do they make a harness for bypassing the amp or do I need to hard wire it myself. I know the wiring scheme going into the amp but does anyone know which wire goes to which speaker coming out of the amp?On another note, the only speaker with full range sound it the rear-right speaker. All of the others sound like tiny computer speakers. The sound is not scratchy like blown out speakers. All I can think of is that either the amp is sending bad sound or the speakers were changed by the previous owners to crappy ones. Bypassing the amp should narrow that down.

[petetomo]

Anyone have an idea where the crossover is that sends the sound to the tweeters? Is it in the front doors or is it done by the amp?

[joatmon]

Quote, originally posted by petetomo »Anyone have an idea where the crossover is that sends the sound to the tweeters? Is it in the front doors or is it done by the amp?what year?for the 2003-2004 and possibly through 2008, the diagram at http://forums.genvibe.com/zero...o.gif applies, and shows the tweeters hooked up directly to the amp

[petetomo]

It's a 2003

[petetomo]

Just a quick update... I bypassed the amp by matching like colors and it all went fine. The head unit is now directly connected to each speaker. I haven't wired the tweeters yet. I plan on getting a crossover and wiring them together with the front speakers.

[audiovibe]

Sorry I always forget to follow this thread Kinda late to the party but Metra and Best Kits both offer amp bypass harness for the Vibe, though I don't recall the part number, but the piece would have ran between $30-$50 depending on shop.Sorry I couldn't help sooner.Aron

[toronto_user]

Hi, audiovibe. Could you please post a wiring diagram for 2009 Vibe? I am trying to connect after market HU (so it turns on in accessory position) + bypass OnStar. Thank you very much in advance.Is it the same as on earlier Vibes? Accesory GRAY (+) RADIO HARNESS

[audiovibe]

My Chart says that it is gray; I thought the accessory needed to be tapped elsewhere though.Aron

[toronto_user]

Thank you Aron. Got your PM as well. Left you another one. Here is the problem i have:Vibe 2009, no M&T, stock HU is being replaced with Sony CDX-GT930UI + Metra's GMOS-LAN-01 GM data bus interface (the one that retains ONStar functionality that I don't really need). Everything connects and works ok but......in accessory key position radio does not power up even though all wiring connected properly according to both HU and GMOS-LAN-01 manuals and diagrams. I did solve that by connecting red wire that comes out from HU to yellow wire (battery?) on GMOS-LAN-01. With that setup I can turn on radio even if key is not in ignition because yellow wire provides power at all times. I just want to make things properly: HU should turn on ONLY in accessory key position. What can I do? Is there a way to connect HU without GMOS-LAN-01 (I don't need to retain OnStar) with some generic wiring harness for Vibe 09 or for that I need to tap in directly into harness for stock HU that comes out from Vibe's insides? May that generic connection (with OnStar bypassed) make new HU work in accessory key position or that's the radio design problem? Thank you in advance. UPDATE + SUCCESS: Finally I've achieved results that I needed - Sony CDX-GT930UI powers up in ACC key position and also works when engine is turned on. The catch was in GMOS-LAN-01 harness that connects GM plug with GMOS-LAN-01 box. GMOS-LAN-01 harness DOES NOT TAP into GRAY wire (thank you for wiring diagram) which provides +12 for ACC key position as well as +12 when engine is turned on.I've found that with help of cheap multimeter that I've got after your advise, measured voltage on each GM wire in ACC key position and with engine running, tapped directly into GRAY wire in GM wiring and connected it directly to RED wire on new HU harness supplied by Sony bypassing all GMOS-LAN-01 wiring (GMOS-LAN-01 harness -> GMOS-LAN-01 box -> GMOS-LAN-01 harness). BINGO! All works as intended, even Big Brother OnStar works ok, same as with stock radio.Thank you again.Stan

[BlueVibe09]

I'm trying to install an amp in my '09 vibe using the stock HU. I don't have M&T. My problem is that I have tapped into the GREY wire next to the BLUE wire in the HU harness assuming this would be Accesory power I need for the remote turn-on of the amp... Still the amp doesn't turn on. The amp is hooked up correctly and will power on with the high-level speaker connections but I don't want to run it this way. Is this the correct wire I need, should it be working? Thanks.

[joshuaeb09]

I would be interested in the wiring color and pinouts for the 09 Vibe with the Monsoon System. I would like to use the factory wiring to replace the AMP with my RF 40x4 amp (its kind a old but works great) so that way I only need to run new power. I know the sub is powered through it but the factory sub is going bye bye anyways.

[audiovibe]

Updated with the 09/10 Vibes in first post.

[Laserbeak43]

HiI'm looking for the door triggers on my 2006.Note 1 in your list says i should isolate both wires, but as far as i can see,you've only listed 1. I've googled but the only place i can find isthe12volt.com and they only have one wire too.-edit-I hope I'm wrong, but: 1)there's no Red/Yellow wire on my kickpanel, there are a red and a yellow though. 2)also, the trigger button is connected to a red/white wire, which does not connect to my kick panel. If i disconnect all harnesses in my kickpanel, and push the door trigger, the dome light still blinks off and on. 3) the only green wire in my kickpanel connects to my left side power mirror.could someone please help?-edit-I see one door trigger wire headed to the back of my car under the side panel.

[Canuck_2005]

Hello,Thank you for the pin out! It was very usefull.Could you plese tell me what wire/pin on the 2009 vibe is the speed sensor for the guages? I think it is the purple wire 5 pins in from the right but before I tap I want to be sure!

[Laserbeak43]

Thanks just used this to install my stereo.

[Derf]

Post provided some of the information I was looking for. The following link has more details on dash wiring (turn signal colors etc):
http://www.the12volt.com/installbay/for ... ~TID~33385" onclick="window.open(this.href);return false;

Its from the following site, which you need an account to use (appears its part of a dealer network):
https://directechs.com/Default.aspx?Ret ... DirectWire" onclick="window.open(this.href);return false;

I agree with the other posts, Sticky!

[BaseWhiteVibe]

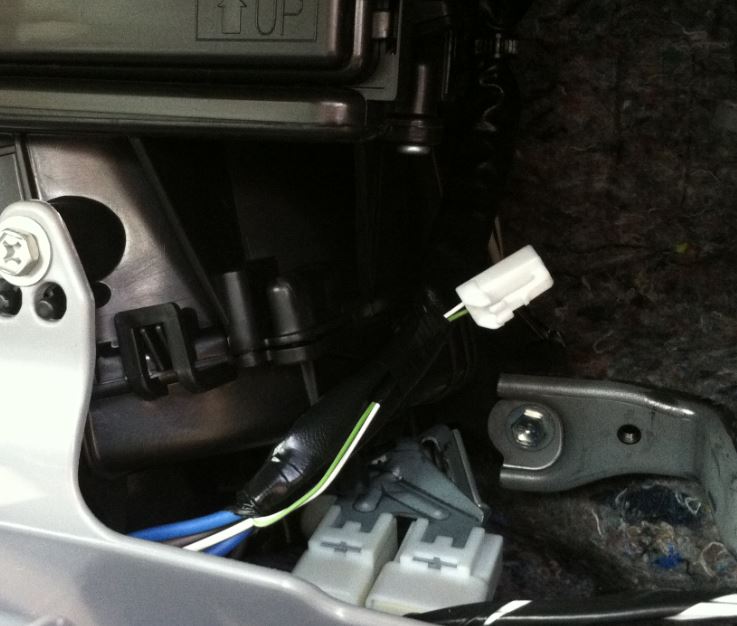

Hi, would you be able to get me a diagram of two particular connectors found behind the glovebox on a 09 Matrix (these are missing on the Vibe)

I really appreciate your help! These are the only two connectors that are preventing me from putting in a RS3200 Alarm in my Vibe!

THANK YOU!

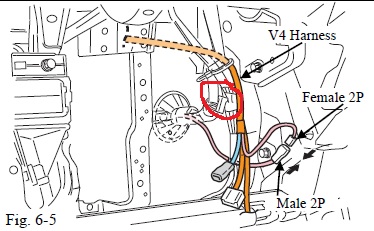

Pictures included for reference
